10" Split Screen Monitor (Quad) for reversing cameras
Couldn't load pickup availability

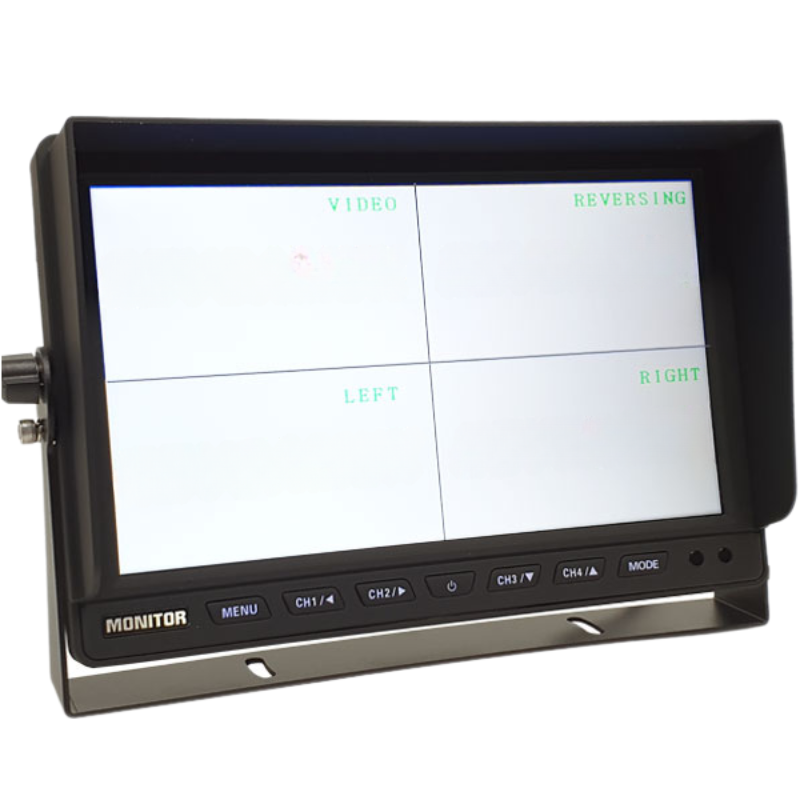

The product is a high-resolution 10" Quad/Split-Screen Digital LCD Monitor, the largest in our range, designed to accommodate up to four cameras simultaneously. This monitor is ideal for vehicles requiring multiple camera inputs, featuring a 1024x600 pixel digital LCD display that offers superior picture quality compared to cheaper analogue LCDs. It includes four trigger wires for custom channel switching, a robust U-shaped bracket for secure mounting, and a deep removable sunhood for enhanced visibility.
Key Features
- 10" Hi-Resolution 1024x600 pixel Digital LCD display (higher resolution than 480x234 pixel analogue LCD)
- Quad/Split-Screen functionality: view up to 4 cameras simultaneously
- Four trigger wires to auto change channel when a trigger occurs (e.g., selecting reverse gear, indicating left/right)
- Trigger wires can be set to stay on for a few seconds after power is last detected
- Heavy-duty U bracket connects to side mounting points, with other reversing camera monitor brackets available
- Deep, removable sunhood/sunshade
- Full function remote control
- Can be left on all the time; provides power to the camera through a 4-pin connector
- Comes with a 150cm power loom/wiring harness with four 4-pin aviation connectors
- Accepts CVBS (D1) video signal inputs
- Menu allows individual mirroring/unmirroring of each channel and setting trigger delays
- Labels "video", "reversing", "left", and "right" are added to the 4 quadrants and cannot be renamed or turned off
- Power supply: 12-24V DC
- TV system: PAL or NTSC
- Resolution: 1024 x R.G.B x 600
- Individual control of mirror/normal on each channel
- 10" colour high resolution panel with LED backlight
- Brightness: 300cd/m²
- On screen menu
Additional Information
It is worth mentioning that we don't recommend using quad/split screen monitors if your intention is to full screen one camera most of the time, as split screen monitors use multiplexers to digitally handle the picture. This can slightly reduce the picture quality in full screen mode compared to using a traditional non-split screen monitor.
Digital LCD Panel Quality
This monitor uses a top-spec Hi-Res digital panel LCD screen with a 1024x600 pixel display. Unlike standard LCDs, the digital panel offers significantly improved picture quality, brightness, and colour replication. We prioritise stocking LCD panels with the brightest backlights and the best colour accuracy, even though they cost approximately 50% more. This investment ensures high reliability and satisfaction, resulting in many happy repeat customers.
