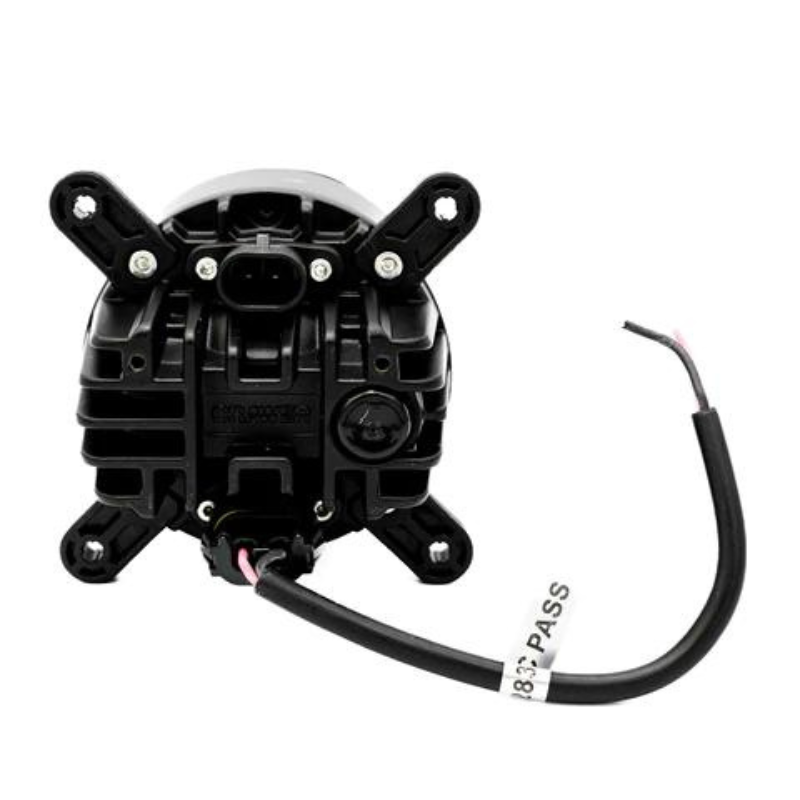

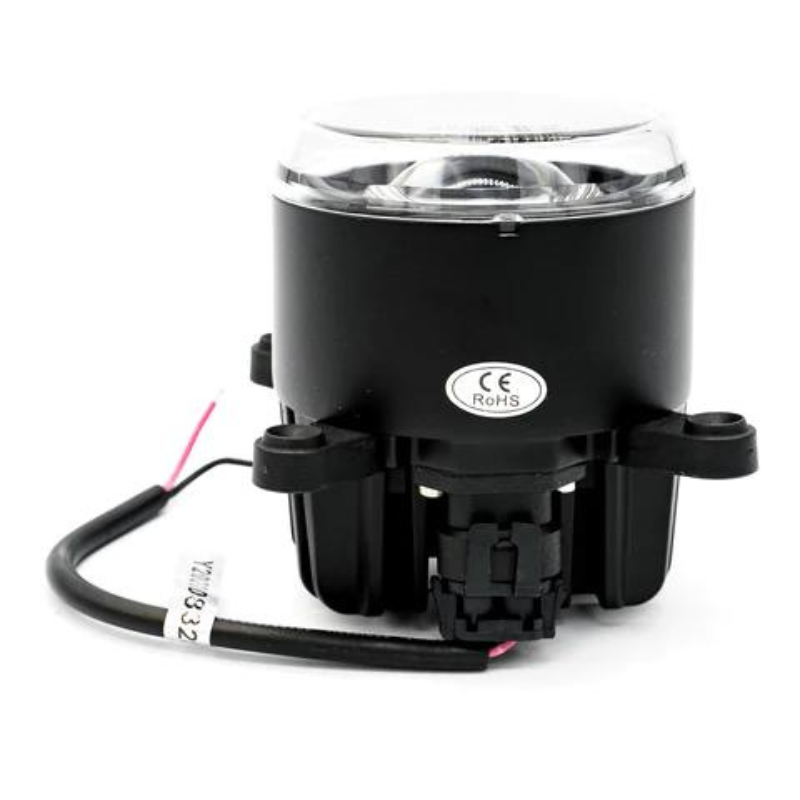

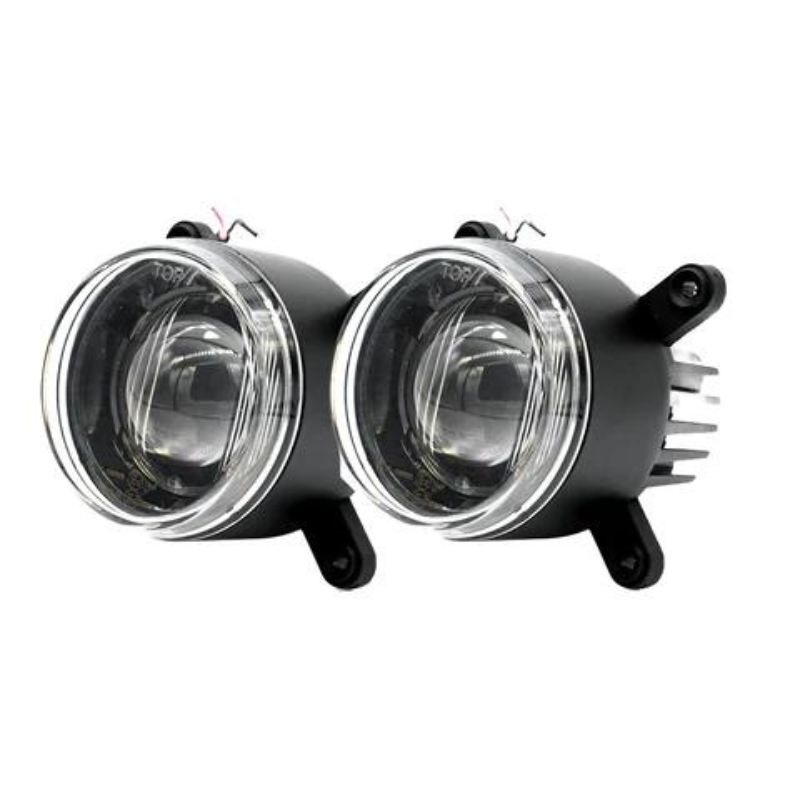

Crawer LED Low Beam Headlight Set - CR-3007S

A set of two LED headlights with single low beam, also available as a single high-beam headlight or high and low beam (please enquire). This headlight is compatible with many agricultural vehicles, as shown in the list below; it is equipped with the correct connectors to replace the original Halogen modules of Hella.

Compatible With

• Hella: 008193027
• Massey Ferguson: 4352924M3, 4352924M2, B69383
• Massey Ferguson 5600, 5700, 6600, 6700, 7600, 7700, 8600 and 8700 series
• Claas: 0011064011
• Claas: Celtis, Nectis, Elios, Axos, Atos, Arion and Axion
• Fendt: 800 SCR, and 900 SCR series

Key Features

• SET: 2 X HEADLIGHT LOW BEAM
• FUNCTIONS: LOW BEAM
• APPLICABILITY: TO BE USED IN THE ROOF AND BONNET
• HOUSING: POWDER-COATED ALUMINUM
• BULB FINISH: PMMA
• OSRAM LED CHIPS
• CONNECTION: 9005/9006 CONNECTOR
• LIFETIME : +50,000 HOURS
• IP RATING: IP67 DUST AND WATERPROOF
• EMC RADIO SUPPRESSED: CISPR CLASS 4
• EQUIPPED WITH E-MARKING R10, R112
• LIGHT COLOR: COLD WHITE
• COLOR TEMPERATURE: 6000K

• WATTAGE: 30W
• VOLTAGE: 10-32V

DIMENSIONS IN MM.

• BULB LENGTH: 106MM
• BULB HEIGHT: 90MM
• BULB WIDTH: 90MM
