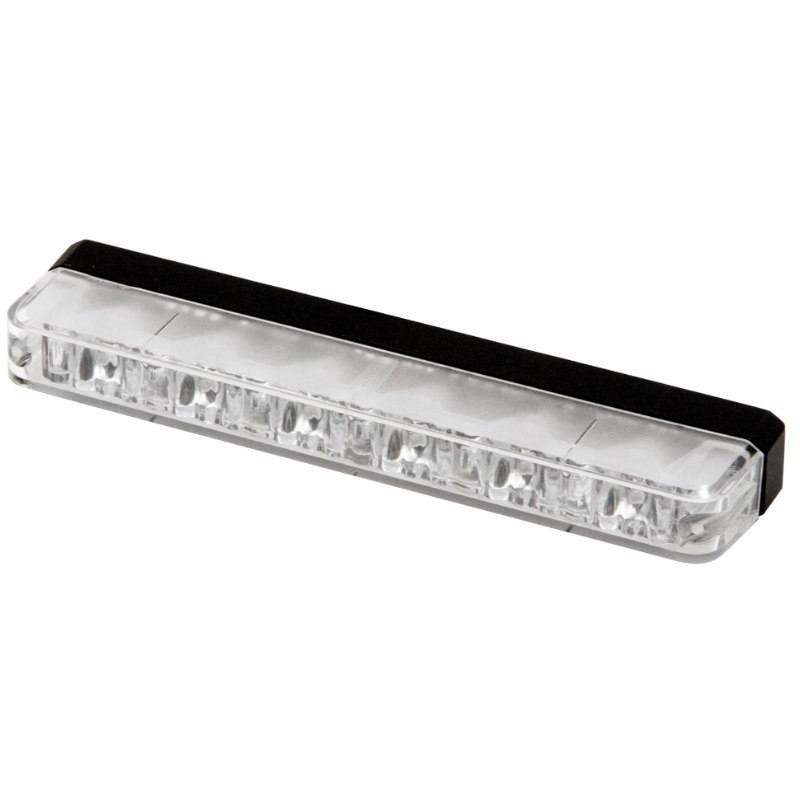

White LED Directional Module- Edge Saber Series ES6

The Edge Saber Series ES6 White LED Directional Module showcases a sleek, narrow profile, and a versatile multi-angle bracket for mounting in various locations, including tight spaces. It features a unique optical design for powerful illumination, is ECE R10 EMC compliant, and has long-life LEDs rated for 100,000 hours. With its robust aluminum housing and IP68 rating, it ensures durability and weather resistance, making it an ideal choice for demanding applications.

Key Features:

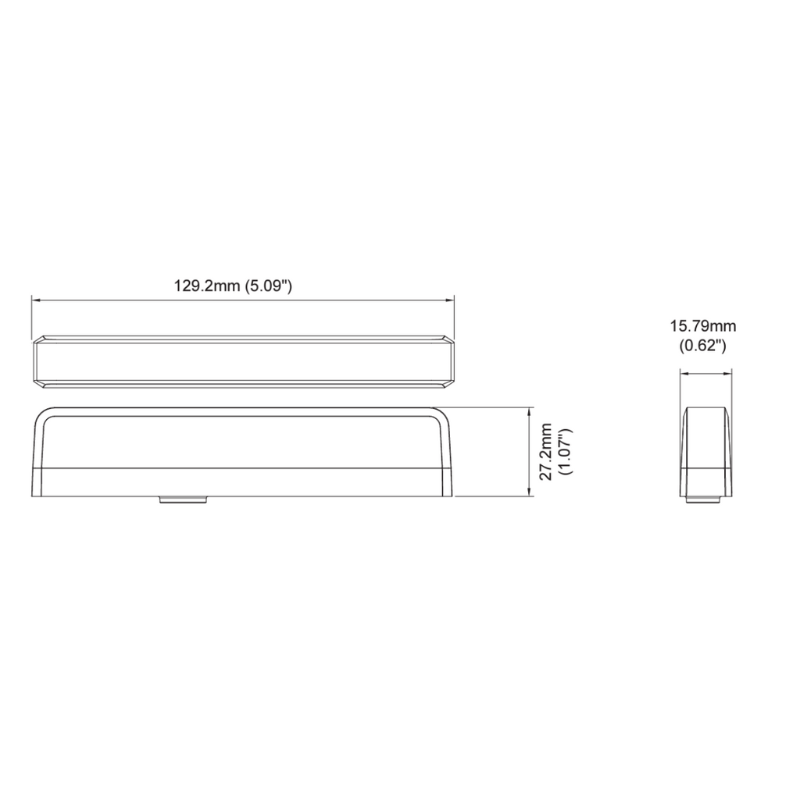

• 15.79mm narrow profile lamp

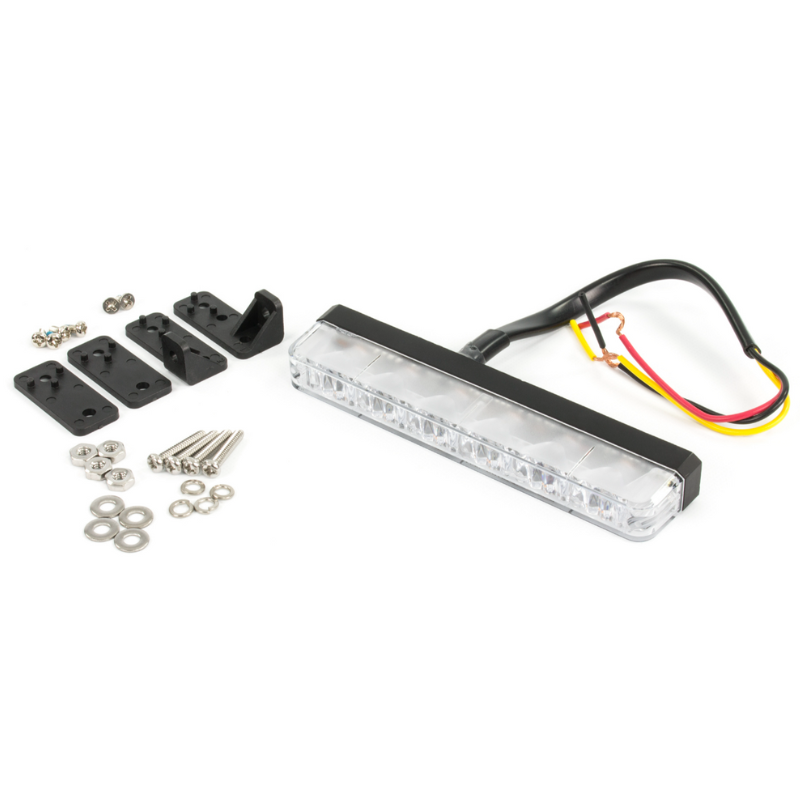

• Universal multi-angle bracket for mounting virtually anywhere
• New unique optical design for efficient and powerful light output
• ECE R10 EMC compliant
• 100,000 rated hours of long life LEDs
• Non-volatile flash pattern memory
• Multiple units can be synced simultaneously or flash alternatively
• Reverse polarity protection
• Weatherproof and vibration resistant

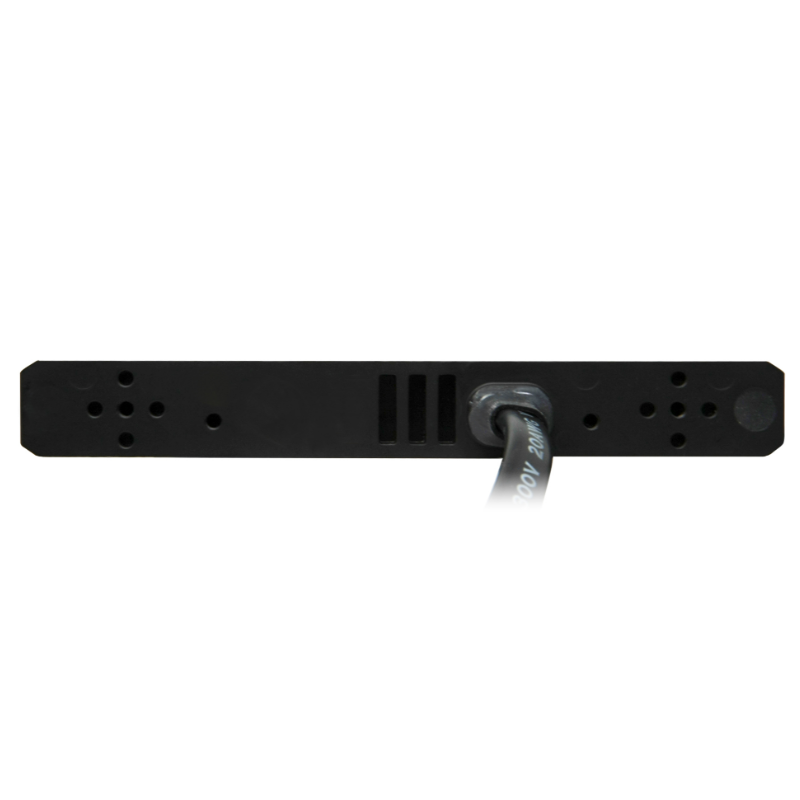

• Solid aluminium housing for efficient heat dissipation and maximum durability

Specifications:

• Approval: ECE R65 (XA1, XB1); ECE R10 ; SAE J595 Class 1; CA Title 13
• IP Rating: IP68
• LEDs: 6 x high power LEDs
• Flash Patterns: 23
• Voltage: 12/24V
• Average Current: 0.57A @ 12V / 0.29A @ 24V (varies with flash patterns)
• Average Power: 6.85 Watts (varies with flash patterns)
• Max Current: 1.14A @ 12V / 0.57A @ 24V
• Max Power: 13.7 Watts
• Wires: Red-Vcc: 25cm (20AWG) / Black-GND: 25cm (20AWG) / Yellow-Sync: 25cm (20AWG)
• Recommended Fuse: 2A
• Colours Available: amber, blue, clear or red
• Part no: LEDDES6
